Conax Technologies has a history of creative innovation that results in unique product solutions and design improvement. With the HPG High-Performance PG Series, Conax has found a way to improve one of our time-tested solutions. The result is an exclusive, high performance compression seal fitting that is only available from Conax.

Employing PEEK® as a sealant material offers unique properties, such as chemical resistance rivaling PTFE, higher operating temperatures, a lower expansion rate, and little to no cold flow—with almost no trade-offs.

By optimizing the fitting design and using a PEEK® sealant,
we have been able to increase pressure performance by
more than 1700%.

If you need to seal on a single sensor, electrode, tube or conductor, Conax Technologies has a variety of options for you. For high-performance electrode feedthroughs (8,000V max, 200A max), please request Conax brochure 6068.

The HPG High-Performance PG Series compression seal fitting is especially well suited to the unique conditions found in furnaces, autoclaves, environmental chambers, oil and gas applications, and chemical and biochemical reactors, where process temperatures and pressures combine to create challenging environments.

In addition to the bore sizes listed in the chart on page 2, Conax can also provide fittings with metric or custom bore sizes.

These fittings are available with options similar to those
available on our standard compression seal fittings including:

Process connection options:

• NPT (standard)
• Weld neck
• Parallel thread (MS/SAE/BSPP)
• ANSI or DN flanges

Body material options:

• 303SS (standard)
• 316LSS
• Inconel 600
• Hastelloy C276
• Monel 405
• NACE
• Other materials upon request

Bore Sizes

Replacement parts are available to keep on hand,
minimizing down time and providing instant repairs
if damage should occur.

The HPG Series bodies have special internal configuration for use with Conax PEEK® sealants. Use of other parts or materials will result in lower to significantly lower pressure ratings.

Features:
* Each unit has a stepped electrode. Larger diameter of electrode is on the body side.
* Electrode is copper (CU), stainless steel (SS) and nickel (NI).
* Max amperage rating:

* Voltage rating 2000VDC
* Body material is 316SS, ASTM 479
* SST nuts and washers for NI and SS, brass for CU
* All prices include a pressure test at 68°F

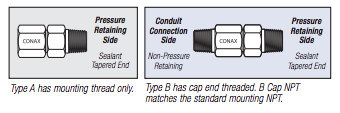

Example: HEGPK–125–B-SS

Application Ideas:

Like the EGT Feedthrough, Conax Technologies HEGPK Feedthroughs electrically and/or thermally isolate single electrodes, tubes or temperature sensors for use in vacuum furnaces, liquid level probes, transformers, environmental chambers, power leads and more. These bare electrical feedthroughs also seal against gases and liquids and resist electrode (also known as conductor) movement under pressure. The HEGPK Feedthrough differs from the EGT Feedthrough in that the single piece insulator/sealant is manufactured from PEEK™, which is recognized as one of the highest performing engineered thermoplastic materials currently available.

The HEGPK Feedthroughs provide several distinct advantages over Conax’s EGT Feedthroughs :
* HEGPK Feedthroughs have higher pressure ratings at room temperature (typically in excess of 250%), as compared to Conax’s EGT Feedthrough.
* HEGPK Feedthroughs also have improved sealing performance at elevated temperatures, as compared to EGT Feedthroughs .

Features:
* Seals one electrode, conductor or element
* Temperature Range: Vacuum to 7,700 PSIg (531 bar)
* Voltage 8000 VDC
* Amperage to 200 amps
* Supplied with or without conductor

Example: EG-093-B-SS-N,

Features:
* Seals 1 Electrode or Element
* For Gas or Non-Conductive Liquid
* Stainless Steel Reusable Fitting
* “Soft Sealant”
* Electrode Easily Assembled or Replaced In Field
* Selected Elements Can Be Readily Replaced
* Reusable
* Wires Easily Assembled or Replaced In Field
* Pressure*: Vacuum to 8,000 PSI (551 bar)
* Voltage: To 2000 VDC
* Amperage: To 400
* Available Without Electrode

Application Ideas:
* Bare electrical feedthrough for vacuum furnaces, liquid level probes, transformers, environmental chamber power leads, etc
* Electrically and/or thermally isolate electrodes, tubes or temperature sensors.

Available replacement pieces are:
* Replacement Packing Set (RPS) consisting of sealant and two insulators.
Example: RPS-EG-093-N
* Replacement Sealant (RS) consisting of sealant only.
Example: RS-EG-093-N
* Replacement insulator consisting of insulator only; two required per gland.
Example: Insulator, EG-093

Example: EGT-093-B-SS

Features:
* Seals 1 Electode or Element
* For Gas or Non-Conductive Liquid
* Stainless Steel Reusable Fitting
* “Soft Sealant”
* Electrode Easily Assembled or Replaced In Field
* Pressure*: Vacuum to 2,500 PSI (170 bar) (Refer to Pressure Rating Guide)
* Voltage: To 8000 VDC
* Amperage: To 525
* Available Without Electrode

Application Ideas:
Bare electrical feedthrough for vacuum furnaces, liquid level probes, transformers, environmental chamber power leads, etc.
Electrically and/or thermally isolate electrodes, tubes or temperature sensors.

Replacement Sealant (RS) consisting of sealant only:
Example: RS-EGT-093

Example: MK-062-A, MK

Conax Technologies Model MK Midlock Fittings (sealing glands) seal a single tube or probe. Featuring a metal-to-metal seal rather than our standard soft sealant technology, MK fittings are used where a joint must be opened and resealed in the same setting. Their unique design forms the seal well within the body housing to provide superior performance in high vibration applications.

Example: PG2S-093-A-T

Conax Technologies offers three models of split fittings (glands) designed to facilitate assembly and sealant replacement when the diameter of the probe tip is larger than the diameter of the element(s) at the location of the seal. Split fittings provide split sealants, followers and seats to facilitate easy sealant change without removing the element(s) from the system.

Features:
* Seals 1 Element
* For Gas or Liquid
* Stainless Steel Fitting
* Simple Assembly – Insert Element, Torque Cap
* Replaceable Sealant Permits Repeated Use Of Fitting
* Field Adjustable
* Tube Stress Concentration Minimized
* Temperature Range From -400°F to +1600°F (-185°C to +870°C)
* Pressure*: Vacuum to 10,000 PSI (690 bar)

Application Ideas:
Sealing of analyzer sampling probes with blow-out collars; allows probe change out with removal of fitting body.
Gas filled capillary bulb temperatue sensors (PartLow style).
Cable assemblies with factory installed connectors (vibration sensors).
Sealing of a simple long length conductor, simplifying assembly, disassembly and change out of sealant.

Replacement Sealant (RS) consisting of sealant only is also available:
Examples: RS-PG2S-093-T, RS-PG4S-250-V, RS-PG5S-500-L

Sample Probe Assemblies (SPAs)

Conax Technologies’ Sample Probe Assemblies (SPA) are used to insert and retract an analyzer sample probe or injection quill into a pressurized process through a process isolation valve. Conax SPAs are designed for unique applications, including:

• Process analysis
• Flare stack emissions
• Chemical injection quills
• Waste water analysis
• Potable water quality sampling
• Hot tapping liquid or gas streams

Conax features

• Plasma welded stop collar
• Retaining Chain Kit
• Wake frequency calculations through our online Wake Frequency Solution Builder™
• Various probe ends and valve types available

Material options

• Optional materials for the Sample Probe Assembly and the Conax Compression Seal Fitting (PG) body (wetted components) are available. Available options include 316L SST, 316 NACE SST, 316L CRN, Monel 405, Hastelloy C276, Inconel 600 and others.
• Sample Probe Assemblies and/or PG fitting bodies can be supplied with a Silcolloy™ 1000 (Silcosteel^®-CR) or SilcoNert™ 2000 (Siltek^®/Sulfinert^®)coating.
• Standard Sealants are PTFE and Grafoil^®. Other sealants are available for special applications.

Ensure your SPA meets ASME and IEC standards

Conax Technologies’ SPA Quote Request form is available to identify the full range of process conditions Conax requires to develop a design solution. Please complete this form and email it to SPA@conaxtechnologies.com. If you need engineering help to ensure you’re choosing the proper Sample Probe Assembly (SPA) for a specific application, we’ve created the Wake Frequency Solution Builder^™ to generate immediate, online wake frequency calculations. This tool enables you to enter data for the specific SPA you need and receive immediate calculation results, based on ASME PTC 19.3 TW-2010 and/or IEC/TR 61831 standards. If there are problems with the configuration of your SPA, you’ll see exactly what needs to be adjusted. If the design is approved, you’ll see confirmation that each element tested has passed, and you can contact us to purchase the SPA.
